CASH DRAWER
M8577
M8577

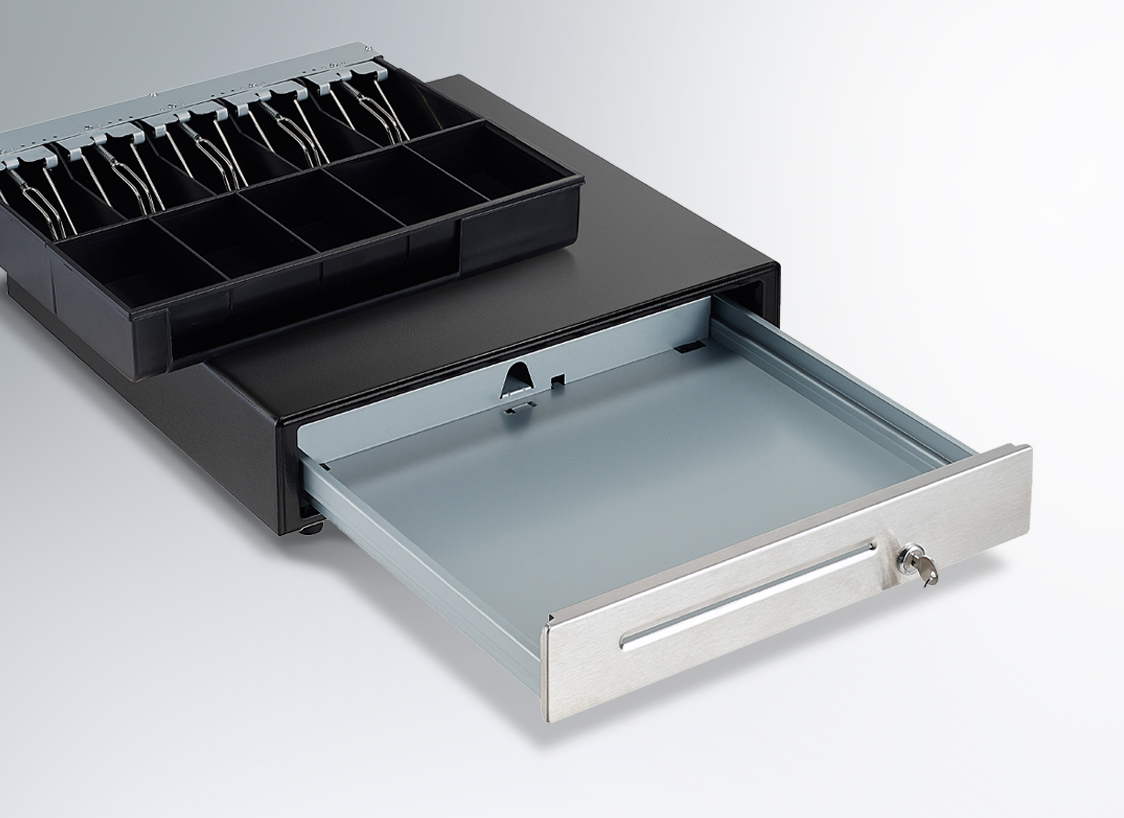

  • Metal cash drawer with heavy-duty ball-bearing rollers
  • 3-Position Key Lock
KEY FEATURES

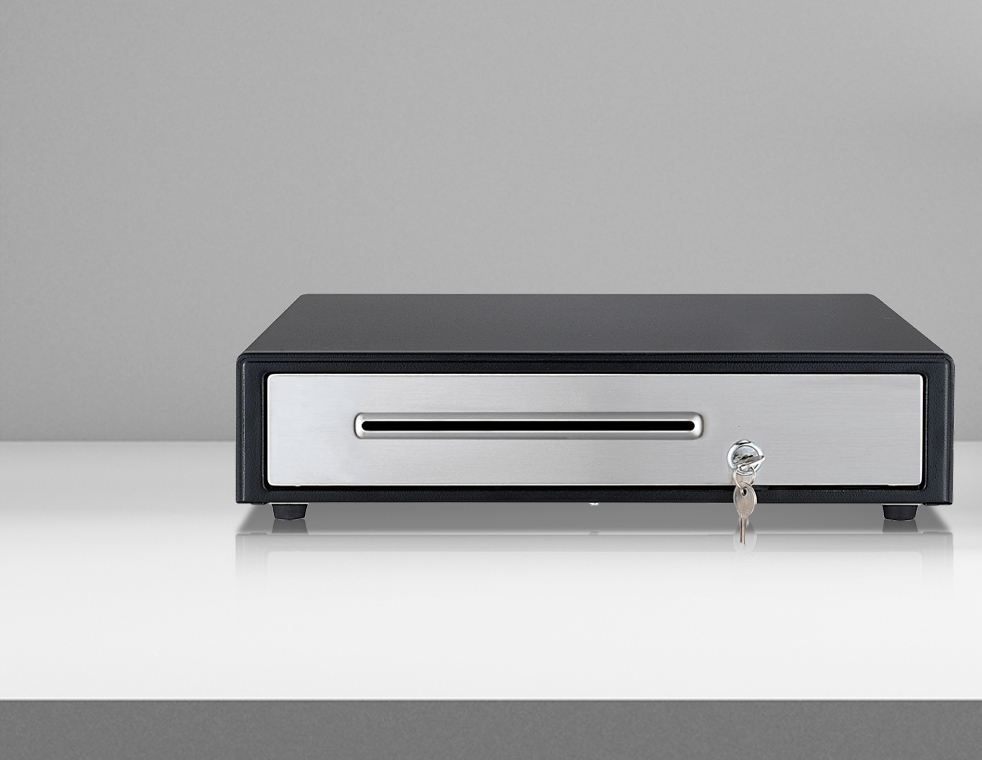

Heavy-duty, Silent, Durable Cash Drawer
  • Metal cash drawer with heavy-
    duty ball-bearing rollers
  • Stainless steel fascia
  • Two Media Slots
  • Removable Bill & Coin dividers
  • 4 Bills / 8 Coins
    5 Bills / 5 Coins
  • High-denomination note
    insertion holes
  • 3-Position Key Lock
  • Durability:1million transactions
Smooth, durable performance with
ball-bearing rollers and stainless-steel fascia.
  • Metal cash drawer with heavy-
    duty ball-bearing rollers.
  • Stainless steel fascia
High-Denomination Slot, Optimized Cash Storage For Maximum On-Site Efficiency

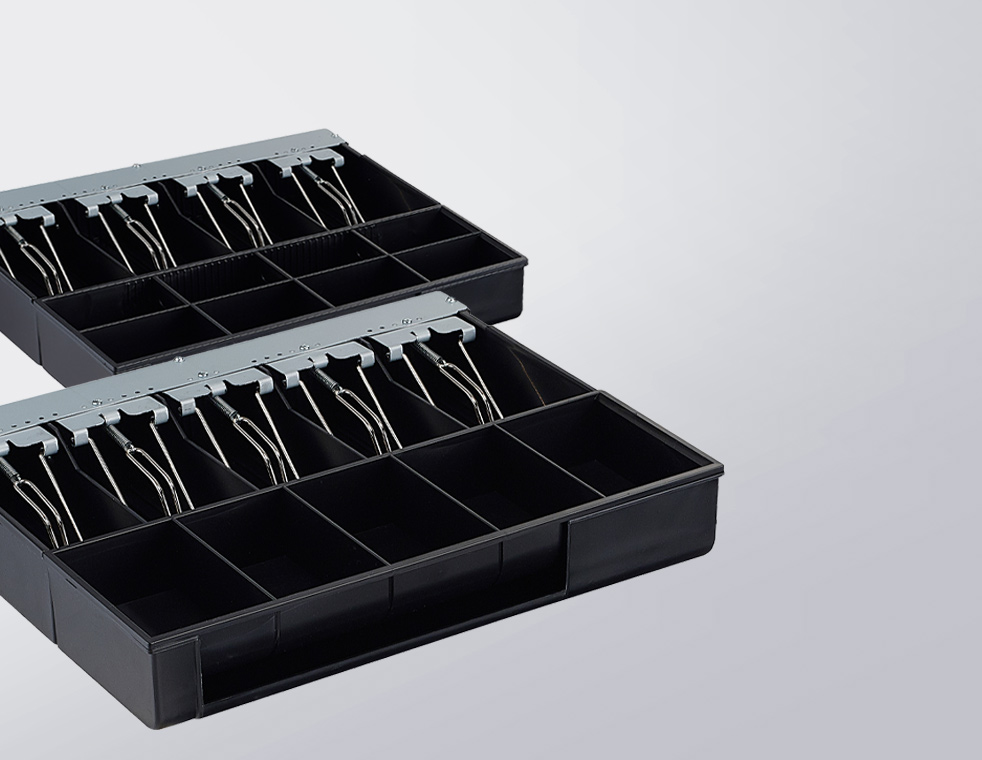

  • Removable Bill & Coin dividers
  • 4 Bills / 8 Coins
    5 Bills / 5 Coins
KDS-2700
System
  • Processors
    [KDS-2700 (AN)]
    Intel® Processor N97 6M Cache, up to 3.60 GHz

    [KDS-2700 (A2)]
    RK3399
    Dual-core Cortex-A72 up to 1.8GHz
    Quad-core Cortex-A53 up to 1.4GHz
  • Chipset
    [KDS-2700 (AN)]
    Intel® Alder Lake

    [KDS-2700 (A2)]
    -
  • Memory
    [KDS-2700 (AN)]
    4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 16GB)

    [KDS-2700 (A2)]
    4GB Standard, LPDDR, On-board (Max. 8GB)
  • Storage
    [KDS-2700 (AN)]
    1. Form Factor
    NVME M.2 2242-D2-M (No capacity limit.)
    2. Mountable quantity: Up to 2 units can be installed.
    * Factory Default : NVMe M.2 2242 128GB x 1

    [KDS-2700 (A2)]
    eMMC 32GB, On-board (Max.64GB)
  • RAID
    -
  • Operating Systems
    [KDS-2700 (AN)]
    Windows 10 IoT Enterprise LTSC 21H2 or higher

    [KDS-2700 (A2)]
    Android 9.0/ 12
  • Software
    -
  • Printer
    -
  • Audio
    HD Audio Codec
Display
  • Type
    27" TFT LCD, LED Backlight
  • Resolution
    1920 x 1080
  • Brightness
    300 cd/m² (typ.)
  • View Angle (U/D/R/L)
    -
  • Touchscreen
    Projected Capacitive Touch
Interface
  • Display
    -
  • USB
    [KDS-2700 AN]
    4 (USB 3.0 x 2, USB2.0 x 2)

    [KDS-2700 A2]
    4 (USB 3.0 x 2, USB2.0 x 2)
  • PS/2
    -
  • Serial
    2[COM1,COM 2( RJ-45, Full Signal)]
  • CashDrawer Port
    -
  • LAN
    RJ-45, Ethernet(10/100/1000M)
  • Audio
    -
  • Power DC-IN
    -
  • MSR
    -
  • VGA
    -
  • HDMI
    [KDS-2700(AN)]
    HDMI x 1 (out)
  • SD Card Slot
    -
  • Extension Slot
    -
  • OTG
    -
Power
  • Power Supply
    Adaptor 24V, 2.5A or AC Input: 110~220V, 50~60
    Option : SMPS (12V, 80W) && PoE++ (60W)
Physical & Environmental
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~60 ℃ at 10% to 90% Humidity
  • Dimensions (W x H x D)
    636.8 x 46 x 387 (mm)
  • Packing Dimensions (W x H x D)
    736 X 169 X 487 (mm)
  • Net Weight
    8,500g
  • Packing Weight
    9,700g
  • Certification
    CE,FCC,KC
  • Color
    Black
Options & Peripherals
  • Display
    -
  • Touchscreen
    -
  • 2nd Displays
    -
  • Customer Display
    -
  • VGA Port
    -
  • I/O Expansion
    -
  • Storage
    -
  • Integrated Printer
    -
  • Magnetic Stripe Reader
    -
  • Smart Card Reader
    -
  • SD Card Reader
    -
  • Multi Reader
    -
  • Dallas
    -
  • Fingerprint
    -
  • System Fan
    -
  • Battery
    -
  • Camera
    -
  • Wall Mount Kit
    230 x 22 x 170 (mm)
  • Serial Conversion Cable
    -
  • Speaker
    2 x 3W(Stereo)
  • WiFi
    [KDS-2150 AN]
    WiFi6 2.4G / 5G 2X2 MIMO Antenna Internal or External (option)

    [KDS-2150 A2]
    2.4G / 5G SISO Antenna internal or External (option)
  • Bluetooth
    [KDS-2150 AN]
    BT 5.2

    [KDS-2150 A2]
    BT 5.0
  • Memory
    -
