DCR™ M4
System
  • Processors
    ST STM32F429BIT6 Cortex-M4 (256byte Cache, 180 MHz)
  • Chipset
    -
  • Memory
    SDRAM 64M byte
  • Storage
    eMMC 4GB (Max. 32GB)
  • RAID
    -
  • Operating Systems
    embOS (RTOS)
  • Software
    POPs Restaurant™ (Pre-installed)
  • Printer

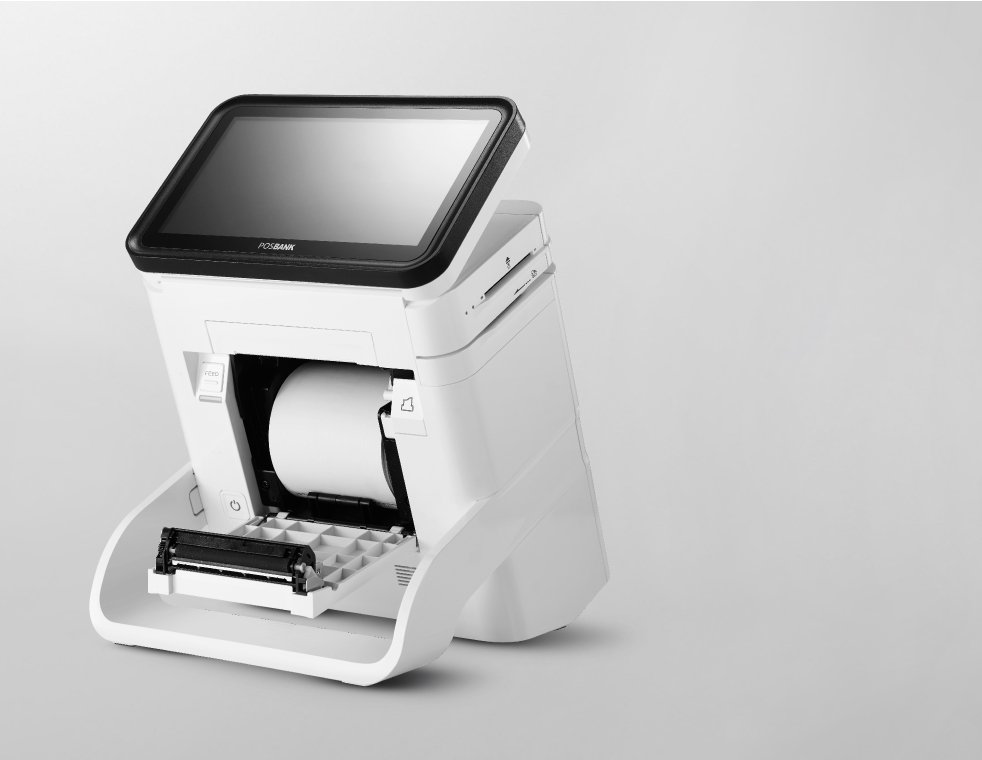

    3" Jam-Free Thermal, Max. 200mm/s, Auto Cutter, Built-in Type
  • Audio
    -
Display
  • Type
    8” Wide TFT LCD, LED Backlight
  • Resolution
    800 x 480
  • Brightness
    250 cd/m²
  • View Angle (U/D/R/L)
    -
  • Touchscreen
    Projected Capacitive Touch
Interface
  • Display
    -
  • USB
    2 (Rear 2, USB 2.0 x 1, USB 1.1 x 1, USB HOST ONLY)
  • PS/2
    -
  • Serial
    COM1, COM2
  • CashDrawer Port
    1
  • LAN
    100 Base-T
  • Audio
    -
  • Power DC-IN
    1 (3 Pin Connector)
  • MSR
    -
  • VGA
    -
  • HDMI
    -
  • SD Card Slot
    -
  • Extension Slot
    -
  • OTG
    -
Power
  • Power Supply
    Adaptor 24V, 2.5A
Physical & Environmental
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Dimensions (W x D x H)
    216 x 278.9 x 255.3(mm), 8.5 x 10.9 x 10.1(in)
  • Packing Dimensions (W x D x H)
    350 x 330 x 285(mm), 13.8 x 13.0 x 11.2(in)
  • Net Weight
    3,000g
  • Packing Weight
    4,200g
  • Certification
    CE, FCC, KC
  • Color
    Glossy White, Matte Black
Options & Peripherals
  • Display
    -
  • Touchscreen
    -
  • 2nd Displays
    -
  • Customer Display

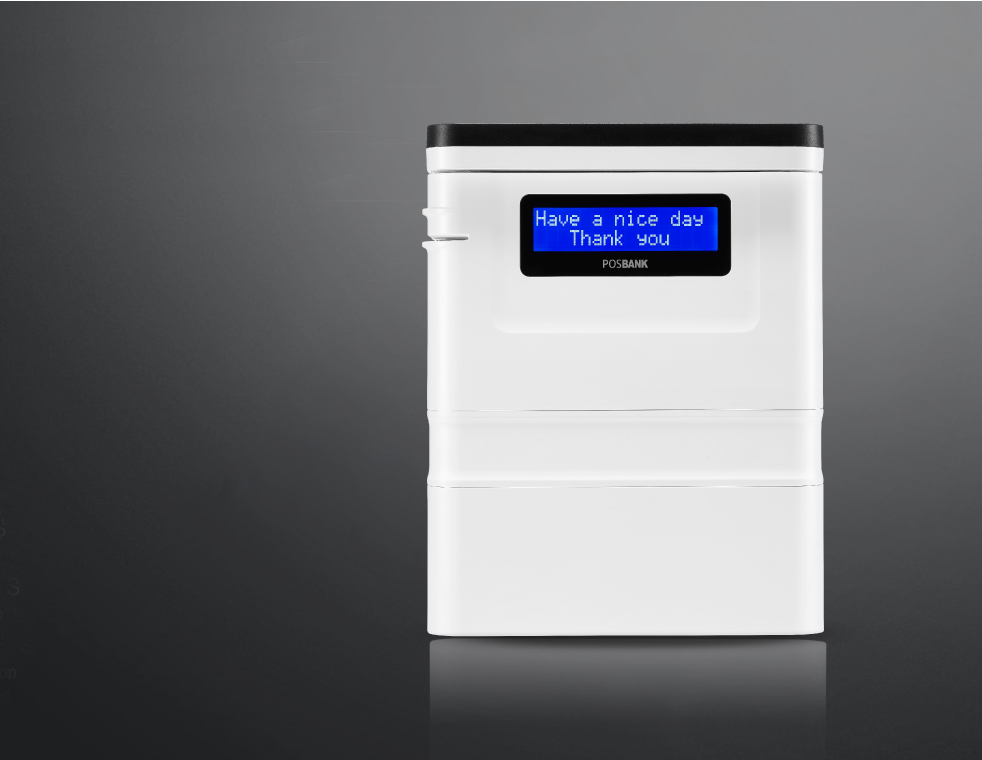

    LCD 16 Columns x 2 Lines (Factory Option)
  • VGA Port
    -
  • I/O Expansion
    -
  • Storage
    -
  • Integrated Printer
    -
  • Magnetic Stripe Reader
    Comply with ISO 7811, Support 1 & 2 & 3 Track (Factory Option)
  • Smart Card Reader
    EMV Level 1, 2 (Factory Option)
  • SD Card Reader
    Yes
  • Multi Reader
    -
  • Dallas
    -
  • Fingerprint
    -
  • System Fan
    -
  • Battery
    -
  • Camera
    -
  • Wall Mount Kit
    -
  • Serial Conversion Cable
    -
  • Speaker
    -
  • WiFi
    SPI Interface for WLAN (Factory Option)
  • Bluetooth
    -
  • Memory
    -
