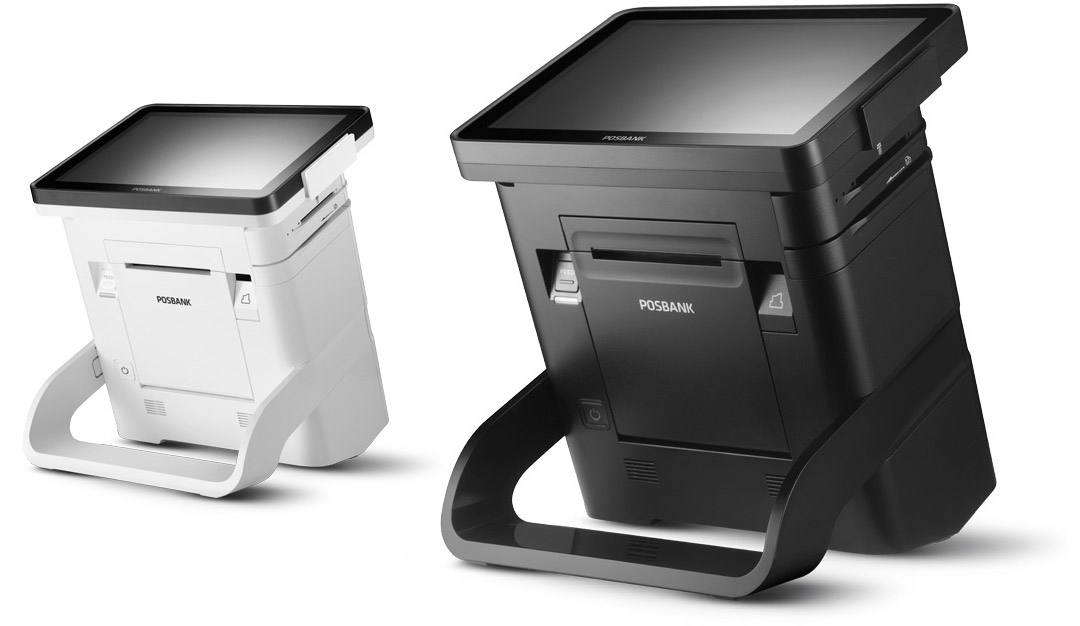

DCR™ A1
System
  • Processors
    ARM® Cortex™-A7 Quad-Core (1.2GHz)
  • Chipset
    -
  • Memory
    1GB, DDR3L
  • Storage
    eMMC 8GB, On-board (Max. 32GB)
  • RAID
    -
  • Operating Systems
    Android™ 6.0 (Marshmallow)
  • Software
    -
  • Printer
    3" Jam-Free Thermal, Max. 200mm/s, Auto Cutter, Built-in Type
  • Audio
    HD Audio Codec
Display
  • Type
    8” Wide TFT LCD, LED Backlightㅣ9.7" TFT LCD, LED Backlight
  • Resolution
    8” 1024 x 600ㅣ9.7" 1024 x 768
  • Brightness
    8” 500 cd/m²ㅣ9.7" 300 cd/m²
  • View Angle (U/D/R/L)
    -
  • Touchscreen
    Projected Capacitive Touch
Interface
  • Display
    -
  • USB
    6 (Rear 5, Internal 1, USB 2.0 x 6), Internal : MSR(HID Class), Printer(Printer Class)
  • PS/2
    -
  • Serial
    5 External : COM 1, COM2 (with 5V Power Output on 9 Pins)
    Internal : COM3(Reserved for MSR), COM4(Reserved for Customer Display), COM5(Reserved for Printer)
  • CashDrawer Port
    1
  • LAN
    1 x 100Mb/s Ethernet
  • Audio
    1 x Line-out
  • Power DC-IN
    1 (3 Pin Connector)
  • MSR
    -
  • VGA
    -
  • HDMI
    -
  • SD Card Slot
    -
  • Extension Slot
    -
  • OTG
    1
Power
  • Power Supply
    Adaptor 24V, 2.5A
Physical & Environmental
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Dimensions (W x D x H)
    8” 216 x 278.9 x 255.3(mm), 8.5 x 10.9 x 10.1(in)ㅣ9.7" 238.6 x 293.5 x 255.3(mm), 9.4 x 11.6 x 10.1(in)
  • Packing Dimensions (W x D x H)
    8” 350 x 330 x 285(mm), 13.8 x 13.0 x 11.2(in)ㅣ9.7" 350 x 375 x 285(mm), 13.8 x 14.8 x 11.2(in)
  • Net Weight
    8” 3,000g, 6.6lbsㅣ9.7" 3,700g, 8.2lbs
  • Packing Weight
    8” 4,200g, 9.3 lbsㅣ9.7" 5,400g, 11.9lbs
  • Certification
    CE, FCC, KC
  • Color
    Matte Black, High Gloss White
Options & Peripherals
  • Display
    -
  • Touchscreen
    -
  • 2nd Displays
    -
  • Customer Display
    LCD 16 Columns x 2 Lines (Factory Option)
  • VGA Port
    -
  • I/O Expansion
    -
  • Storage
    -
  • Integrated Printer
    -
  • Magnetic Stripe Reader
    Comply with ISO 7811, Support 1 & 2 & 3 Track (Factory Option)
  • Smart Card Reader
    EMV Level 1, 2 (Factory Option)
  • SD Card Reader
    Yes
  • Multi Reader
    -
  • Dallas
    -
  • Fingerprint
    -
  • System Fan
    -
  • Battery
    -
  • Camera
    -
  • Wall Mount Kit
    -
  • Serial Conversion Cable
    -
  • Speaker
    -
  • WiFi
    USB Interface
  • Bluetooth
    USB Interface
  • Memory
    2GB, DDR3L (Factory Option)
