PAI TAB
The PAI TAB is a 10.1-inch POS tablet designed to enhance store operational efficiency and customer experience. Its slim, compact design features an octa-core processor for reliable, fast performance. It supports Wi-Fi and Bluetooth, and its 6,000mAh battery and POGO charging ensure long-term, stable operation. The server can be used as a portable tableside ordering device or combined with the cradle to function as a stationary ordering station, providing flexibility in a variety of operating environments. Featuring both portability and expandability, the PAI TAB innovatively supports ordering and payment in a variety of stores, including restaurants and retailers.
MOBILITY WITH FLEXIBILITY
  • 10.1 inches
    Full Touch LCD
  • Octa-core processor
  • Bright and clear touch screen
    (PCAP touch)
  • Built-in Battery
  • Camera – Front (standard) / Rear (optional)
  • Bluetooth + WLAN support
  • Charging cradle (optional)
  • Convenient maintenance
DISPLAY
10.1” IPS LCD &
Precision Touch Configuration
Equipped with a 10.1-inch IPS LCD, it offers a wide, clear screen. The PCAP touch technology ensures precise and delicate touch response.
The bright and clear LED backlight ensures excellent visibility even in dimly lit or reflective environments.
  • 10.1"
    IPS Full touch LCD
  • 300
    300cd/m²(typ.) Bright LED
  • 1280 x 800
    Resolution
PROCESSOR
Octa-core processor &
latest OS support
Equipped with a MediaTek MTK 8781 octa-core processor, it delivers smooth and stable performance, even when multitasking and running apps. It supports Android 15 and GMS certification, ensuring high compatibility with a wide range of apps and services
  • Arm Cortex-A76
  • Arm Cortex-A55
DESIGN
PORTABILITY &
STATIONARY
  • The slim, compact tablet body offers a lightweight design ideal for portable use.
    When combined with a dedicated cradle, it can be used as a stationary ordering station for tables and counters, and docking provides a stable power supply via POGO charging.
    An optional external battery is available, allowing for improved battery life and maintenance depending on the usage environment.
KEY FEATURES
MOBILE TO STATIONARY
Dual-use mode
(portable + stationary)
The tablet can be carried alone and used for tabletop ordering, and when combined with the cradle, it can be converted into a stationary ordering station, providing flexible support for store operations.
Long battery life and easy charging
The built-in 6,000mAh battery allows for long-term use, and supports charging via the cradle or POGO pins, simplifying everyday charging procedures.
High-speed wireless connectivity
Equipped with Wi-Fi 2.4GHz and 5GHz bands and a Bluetooth 4.1 combo module, it provides fast and stable wireless communication and ensures network responsiveness essential for POS environments.
SCALABILITY
Scalability and ease of maintenance
Designed for easy external battery addition and replacement, it minimizes downtime during maintenance. Additional features, such as a rear camera, can be added to meet customer needs, enabling a variety of applications.
PERIPHERALS & OPTIONS

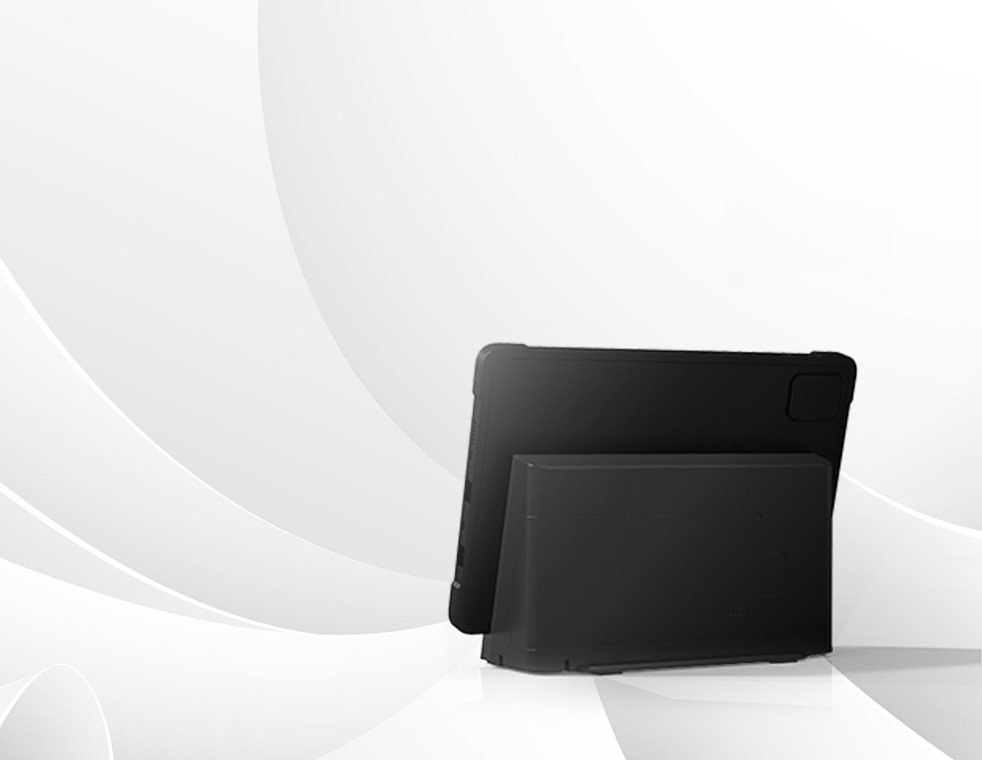

Supports dedicated charging cradle
Includes an external battery option and can be charged with a POGO in a dedicated cradle.

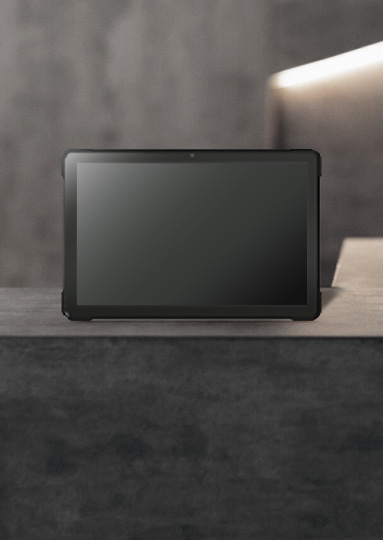

Applications
It can be used as a portable ordering terminal for tableside ordering or at store counters or table-mounted ordering stations.
PAI TAB
PAI TAB
PAI TAB
System
  • Processors
    MT8781
    Dual-core Cortex-A76 up to 2.2GHz
    Hexa-core Cortex-A55 up to 2.0GHz
  • Operating Systems
    Android 15 GMS
  • Memory
    8GB (LPDDR4 2133 MT/s)
  • Storage
    128GB (UFS 2.1)
Display
  • Type
    10.1" TFT LCD, LED Backlight
  • Resolution
    1280 x 800
  • Brightness
    350 cd/m²
  • Touchscreen
    Projected Capacitive Touch
Interface
  • Port & Slots
    2x USB C-Type (1 x USB 2.0, 1 x USB OTG : Host mode only)
  • Audio
    HD Audio Codec
Power Supply
  • Battery
    - Adaptor 5V, 2A(USB C-Type Plug)
    - Adaptor 5V, 3A(USB C-Type Plug) : Korea
Physical & Environmental
  • Demensions
    PAI TAB : (WxDxH) 246 x 165 x 11.3 (mm), 9.68 x 6.5 x 0.44 (in)
    Cradle : (WxDxH) 203.3 x 119 x 87.5 (mm), 8.0 x 4.6 x 3.4 (in)
  • Weight
    PAI TAB : 0.56kg, 1.23 lbs
    Cradle : 0.80kg, 1.76 lbs
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Certifications
    CE, FCC, KC, JMIC
Options
  • Camera
    Front 5MP, Rear 13MP(Option)
  • Speaker
    2 x 1W
* Specifications may change without prior notice.
